共模電感

  • 共模濾波器電感 (Common Mode Choke)，簡稱共模電感、巴倫器，或共模扼流圈。採用鐵氧體磁心雙線並繞設計，具有極高的始導磁率，對干擾具有極好的抑制作用；高飽和磁感應強度，在電流強干擾的場合不易磁化到飽和。卓越的溫度穩定性，性能的變化接近於線性。有效地抑制高共模噪音及低差模噪聲，穩定高速信號波形，提高電子設備抗幹擾能力，是雜訊抑制最佳對策。



     Photo  Series Dimensions
    L×W×T(mm)    		  Category  Impedance
    (Ω)    		  Inductance
    (μH)     		  Rated Current
    (mA)     		  Specification  RoHS&REACH Declarations
    / ICP Report

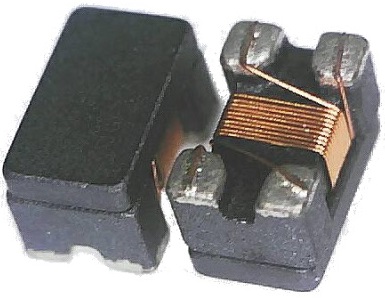

    BT2012-Series 2.0*1.2*1.2
    (0805)    		 Chip Balun Transformer 50/50
    75/75    		 ───  ─── Send Inquire
    CM0806D-Series 0.85*0.65*0.45 Common Mode Choke 35~90 ─── 100
    CM1210A-Series 1.2*1.0*0.9
    (0504)    		 Common Mode Choke 67~330 ─── 300~200
    CM1210C-Series  1.2*1.0*0.9
    (0504)    		 Common Mode Choke For HDMI 25~120 ─── 300~270
    CM1210D-Series  1.2*1.0*0.9
    (0504)    		 Common Mode Choke For USB3.0 25~90 ─── 300~280
    CM1608A-Series  1.6*0.8*1.1
    (0603)    		 Common Mode Choke 67~220 ─── 300~200
    CM1608C-Series   1.6*0.8*1.1
    (0603)    		 Common Mode Choke For HDMI

    60~90

    ───

    		 550
    CM1608D-Series   1.6*0.8*1.1
    (0603)    		 Common Mode Choke For USB3.0 60~90 ─── 300
    CM2012A-Series  2.0*1.2*1.2
    (0805)    		 Common Mode Choke 30~900 ─── 500~200
    CM2012B-Series   2.0*1.2*1.2
    (0805)    		 Common Mode Choke 60~370 ─── 400-280
      CM2012C-Series   2.0*1.2*1.2
    (0805)    		 Common Mode Choke For HDMI 24~160 ─── 300
      CM2012D-Series   2.0*1.2*1.2
    (0805)    		 Common Mode Choke For USB3.0 12~90 ─── 420-300
    CM2012S-Series  2.0*1.2*1.2
    (0805)    		 Common Mode Choke 25~260 ─── 420~300
      CM3216A-Series 3.2*1.6*1.9
    (1206)    		 Common Mode Choke 67~2200 ─── 400~200
      PCM3216A-Series 3.2*1.6*1.9
    (1206)     		 Common Mode Choke Coil For Power Lines 37~1100 ─── 1000~500
      PCM3225A-Series  3.2*2.5*1.9/2.2
    (1210)    		 Common Mode Choke Coil For Power Lines 80~1000 ─── 2000~1200
      PCM4532A-Series 4.5*3.2*2.8
    (1812)    		 Common Mode Choke Coil For Power Lines 80~1000 ─── 3000~1000
      PCN5045A-Series  5.0*4.5*2.5 Common Mode Choke Coil For Power Lines 100~1400 ─── 6000~1500
      TCM3225-Series-3P 3.2*2.5*1.8  Common Mode Choke 600~2200 ─── 300~200
      UCM1210E-900S 1.2*1.0*1.2  Common Mode Choke For USB3.1 90 ─── 280
    UCM2012E-900S 2.0*1.2*1.3  Common Mode Choke For USB3.1 90 ─── 500
      RYCM7060F-Series 7.0*6.0*3.8 SMD Power Common Mode Choke 100~1300 ─── 9.0~2.5
      RYCM9070F-Series 9.0*7.0*4.8 SMD Power Common Mode Choke 300~3000 ─── 6.0~3.0
      RYCM1211F-Series 12.0*12.5*10.8 SMD Power Common Mode Choke 80~2700 ─── 10.0~1.5
      RYCM0905U-Series 9.2*6.0*5.0 SMD Power Common Mode Choke ─── 0.33~10 6.8~1.4
      RYCM0905T-Series 9.8*8.6*5.3 SMD Power Common Mode Choke ─── 0.47~10 10~2.4



    1. For Customer Design

    2. Ex Part Number - xxx

    3. P/N Series + Size + 特性 - 內部代碼
